There are several possibilities
to solve the problem of pattern generation for the self-test. Most common and
classical approaches are based on a pseudo-random pattern generator and signature
analyzer (like BILBO or CSTP).
In this way we receive quite a long test: L patterns generated by an
LFSR.
However, there are quite common situations, where the testing time is
the subject of a special concern. For such cases, this basic approach is not
feasible because of the large test length (and therefore the testing time).
To fight this problem, we can generate very short test (with the length S
<< L) using external automated test pattern generators (ATPG). These
generated patterns need to be stored inside the chip somewhere in a memory.
In that case no LFSR is needed to generate patterns on the fly and at the same
time we can have the shortest possible test. However, it will occupy much space
inside the chip, because we need some dedicated memory module to store it there.
So, this seems not to be an optimal solution.
There is a technique, which uses some small amount of stored test vectors and
generates the most of needed vectors on the fly. It can help us in such a difficult
situation. In this approach, stored patterns used as the seeds of the LFSR.
Using these seeds, a set of short test sequences is generated one after another.
Each sequence is generated by using the correspong seed. Taken all togeter,
these sequences produce a good fault coverage. At the same time, such a BIST
device does not take up much space and works remarkably faster than a
conventional LFSR generator.

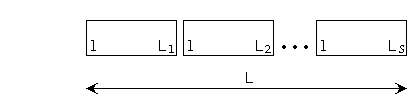

Suppose, we have S seeds stored in memory and for every seed i
we choose the sequence of length Li. The total test length
will be L=L1+L2+...+LS. An optimal solution
will be such a solution where using minimal number of stored vectors S
we are able to achieve required maximal total test length L which is
much less than in the "only generated" case.
The picture below shows a possible implementation of the "store & generate" approach. The random test pattern generator (TPG) and the signature analyzer (SA) are implemented by LFSRs exactly in the same way as in BILBO. At the same time a memory module is attached to the TPG. Here, CC is a combinational circuit under test.
